The reliable partner of air cargo and airline companies, Van Eck Trailers stands out with its innovative floor-integrated roller conveyor system, which has been developed in cooperation with Lufthansa.
The Van Eck roller conveyor system is designed with an automated driving unit system requiring less manpower when loading and unloading the high and heavy air cargo pallets.
Whereas 3.055 mm high rear entrance provides maximum loading capacity, the Eckspress Series can accommodate 3 m high main deck air-cargo pallets.
Offered with various superstructures, and with FRC, FNA or Pharma certification, Eckspress Series are built to make sure your vehicle is always ready for the next call.

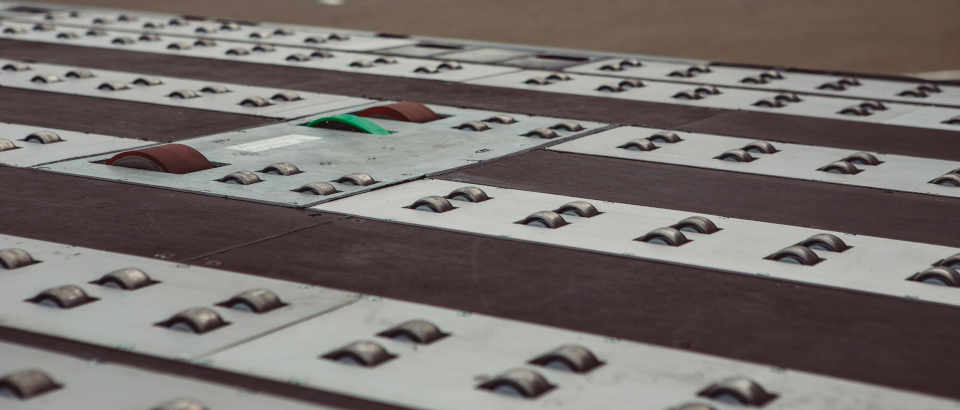

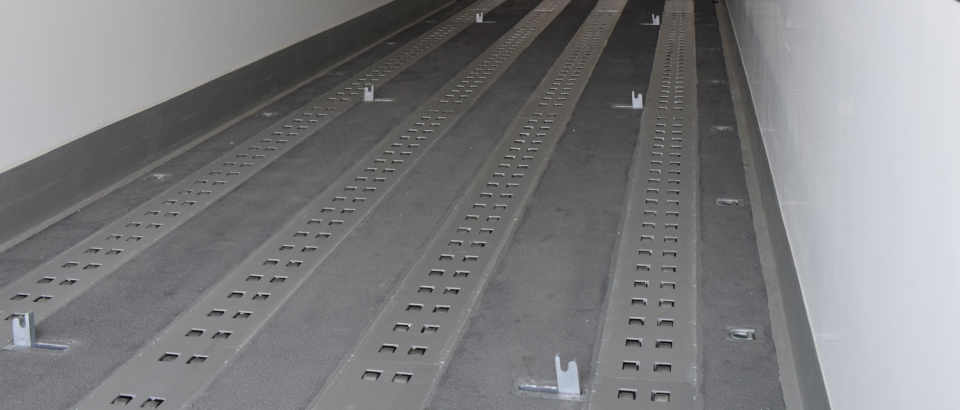

Designed with reliability and lifespan in mind, Van Eck roller conveyor system consists of four rows of pneumatic roller conveyors with twin airbag and twin rollers – each roller 40 mm wide and with 50 mm diameter.
Furthermore, each roller has two bearings instead of one to minimize friction for a smoother loading and unloading operations.
Pallet stoppers are positioned in front and behind every pallet – total of 10 units.
The rollers are controlled by a 4-valve system in a waterproof box under the trailer platform. With auto-down option, the system ensures the rollers are automatically retracted below the floor level before the vehicle switches to driving position.
The roller conveyor system is fitted with an automated drive system requiring less manpower when loading and unloading the high and heavy air cargo pallets.
Transport companies that commission Van Eck to build a drive-assisted vehicle, automatically meet the Lufthansa requirements.

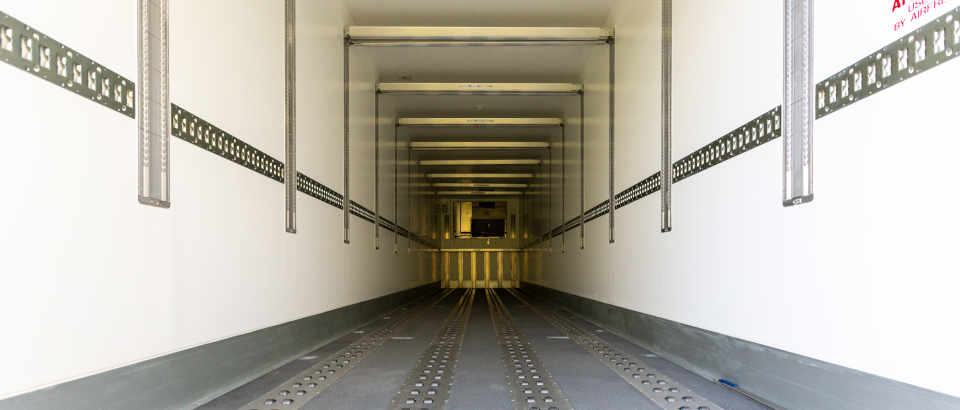

Van Eck air cargo vehicles with double deck option offers various loading possibilities for all sizes of pallets. In standard vehicle; up to 66 euro pallet capacity can be achieved.
Double deck beams can be located different places for the highest efficiency.
Front Panel:
Galvanized steel protection sheet with 490 mm height on the front panel.
Side Panel:
Aluminum protection plate with 250 mm height along the side panels which protects the panels from
impacts.

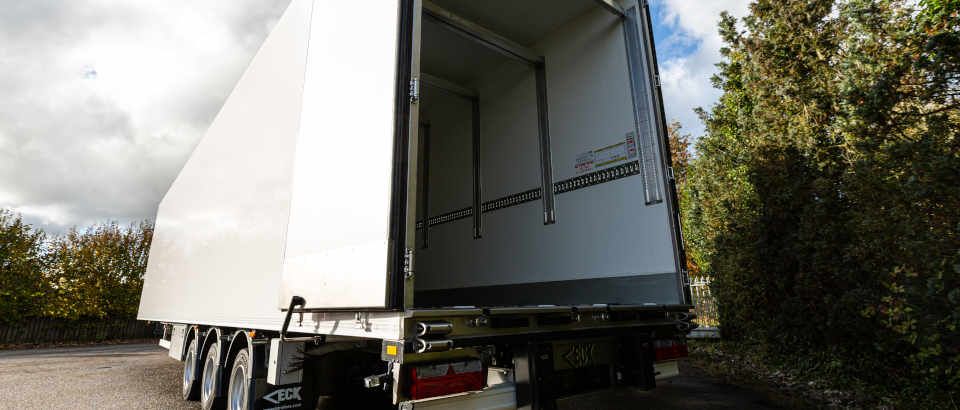

Rear Panel:
Stainless steel protection plate on the inside of the door. Height 300 mm with bent edges and under
door seals.
All vehicles within the Eckspress series can accommodate 3 m high pallets with various loading configuration possibilities as below:

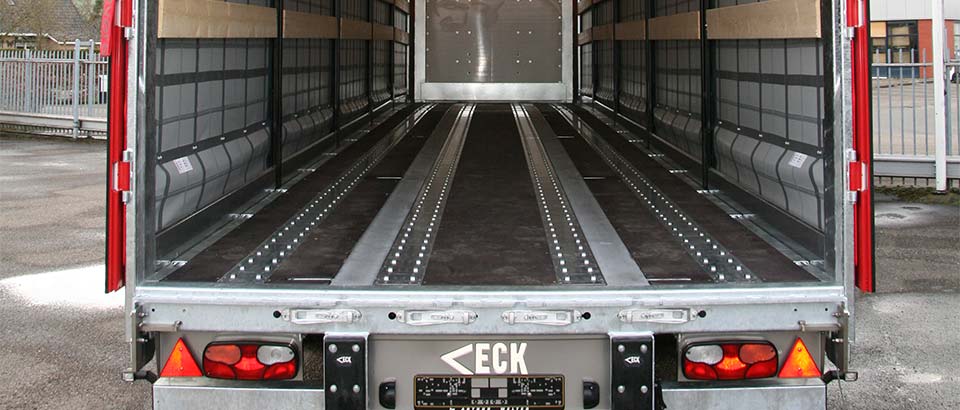

The Eckspress series offers various superstructure options for the transport of air cargo pallets, such as a curtainsider with sliding roof, polyester plywood and an insulated superstructure for refrigerated transport.
